¶ dcc:validXMLList
The element type dcc:validXMLList is used to specify foot notes for si:realListXMLList elements in a DCC. You can specify a list of boolean valuesa separated by a space to specify where the data from the meta data belongs to (see the XML example below).
¶ Extract from the XML schema.
<xs:element name="validXMLList" type="dcc:booleanXMLListType"/>
¶ Filling-in example

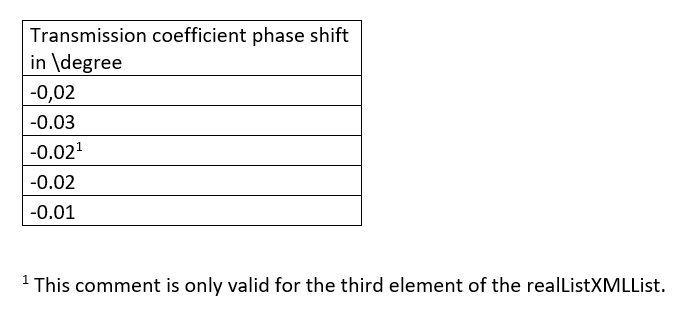

If you would want to display following table with the following foot note.
You have to have the following structure in your DCC with version greater or equal to 3.2.0.
<dcc:quantity refType="basic_xxx">
<dcc:name>
<dcc:content lang="en">Transmission coefficient phase shift</dcc:content>
</dcc:name>
<si:realListXMLList>
<si:valueXMLList>-0.02 -0.03 -0.02 -0.02 -0.01</si:valueXMLList>
<si:unitXMLList>\degree</si:unitXMLList>
</si:realListXMLList>
<dcc:measurementMetaData>
<dcc:metaData>
<dcc:declaration>
<dcc:content lang="en">This comment is only valid for the third element of the realListXMLList.</dcc:content>
</dcc:declaration>
<dcc:validXMLList>false false true false false</dcc:validXMLList>
</dcc:metaData>
</dcc:measurementMetaData>
</dcc:quantity>
